    BMW?

    WL1-0199

    Turbo Parts No 49135-05895
    Turbo Model TF035HL
    OEM Part 11652433152/ 11652287498/ 11658506894/ 11658506892/ 11657808478/ 11657797782 49135-05895 49135-05885 49135-05860 49135-05850 49135-05840 49335-00440 49335-00230 49335-00220
    Application Model BMW120D/320D/520D/X3 2.0D/ X3 1.8D
    Engine Code N47D20 N47OL
    Turbocharger
    WL1-0199
    Fit for: 49135-05895 BMW? BMW120D/320D/520D/X3 2.0D/ X3 1.8D TF035HL 11652433152/ 11652287498/ 11658506894/ 11658506892/ 11657808478/ 11657797782 49135-05895 49135-05885 49135-05860 49135-05850 49135-05840 49335-00440 49335-00230 49335-00220
    €EU 408.65
    €EU 371.5
    BUY NOW
    ADD TO CART
    Item Welot Code Turbo Parts No.
    CHRA/ Core Assembly WL2-0440 49135-05895
    Electronic Actuator / 49135-05895
    VNT Nozzle Ring WL3-1996 49135-05895
    Turbine Housing WL3-1897 49135-05895
    Compressor Housing WL3-0571 49135-05895
    Bearing Housing WL3-0440 49135-05895
    Compressor Wheel WL3-0755 49135-05895
    Heat shield WL3-1084 49135-05895
    Shaft & Wheel WL3-1672 49135-05895
    Seal plate WL3-1490 49135-05895
    Back plate / 49135-05895
    Oil Pipe / 49135-05895
    Repair Kits WL3-1327 49135-05895
    Gasket Kits / 49135-05895
    Calibration Data
    VSR Balance Calibration /
    T/hsg Angle /
    C/hsg Angle /
    Actuator Calibration 1 /
    Actuator Calibration 2 /
    Actuator Calibration 3 /

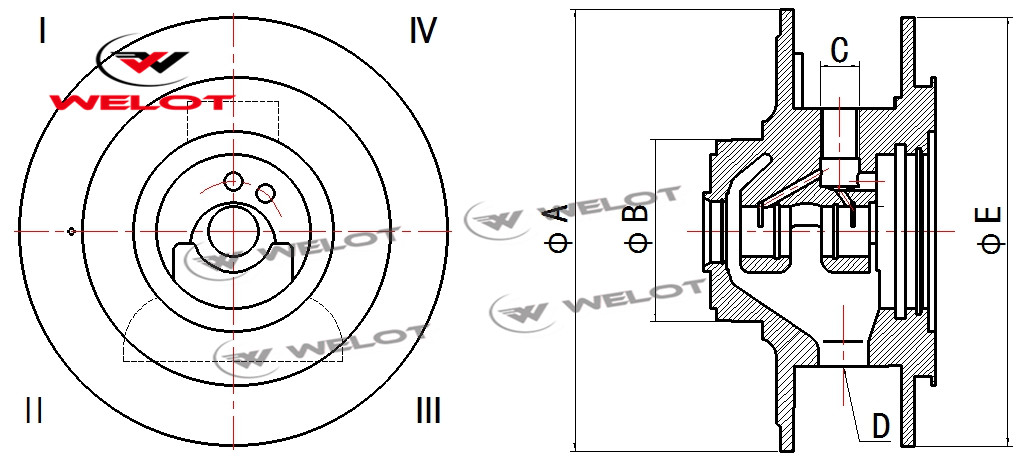

    Welot Code WL3-0440
    Turbo Parts No 49135-05895
    A Dia 114.6
    B Dia 47.6
    C Oil Inlet M10*1
    D Oil Outlet 2-M6*1
    H Water 111.4
    VNT Lever Position Ⅰ
    Welot Code WL3-1672
    Turbo Parts No 49135-05610/49135-05640/49135-05650/49135-05660/49135-05620/49135-05670/49135-0567/49135-05730/49135-05840/49135-05870/49135-05895/49135-05850/49135-05885/49135-07310/49135-0565/49135-05830
    A Dia 43.05
    B Dia 37.72
    C Dia 7.54
    D Dia 7
    E Dia 5
    Blades 11
    Closed or Open Closed
    QTY of Rings 1
    Remark /
    Welot Code WL3-0755
    Turbo Parts No 49135-05610/49135-05640/49135-05650/49135-05660/49135-05730/49135-05620/49135-05670/49135-05671/49135-05895/49135-05651/49135-05830
    Inducer Diameter A 38.3
    Exducer Diameter B 51.1
    Shaft Bore C 5
    Tip Height D 4.1
    Total Height E 24.2
    Blades 6/6
    Flatback / Superback Superback
    Milling Wheel /
    Remark /
    Welot Code WL3-1490
    Turbo Parts No 49135-02652/49135-02672/49135-05620/49135-05670/49135-05671/49135-05895/49135-05610/49135-05640/49135-05650/49135-05660/49135-05730/49135-05830/49377-07000/49377-07010
    A Dia N/a
    B Dia 40
    C Dia 10
    D Height 10
