    SMART

    WL1-0015

    Turbo Parts No 724961/712290
    Turbo Model GT1238S
    OEM Part A1600960699 724961-5002S 724961-0002 724961-0001 724808-0001 712290-0001 A1600960699 A1600960599 007926V002000000
    Application Model Smart 0/6 (MC01) 1H
    Engine Code M160R3 3Zyl.

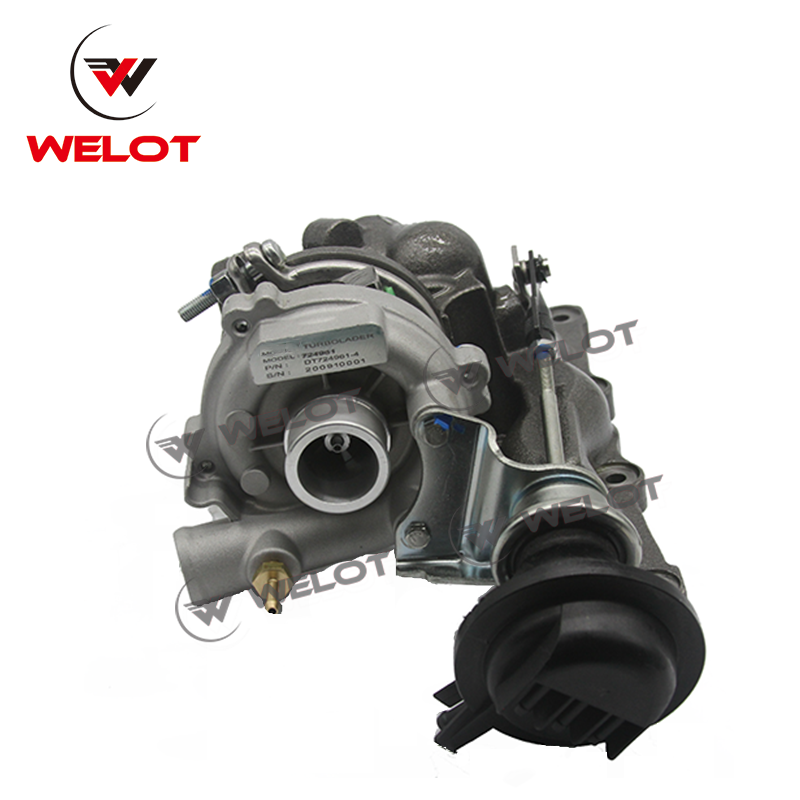

    Turbocharger
    WL1-0015
    Fit for: 724961/712290 Smart Smart 0/6 (MC01) 1H GT1238S A1600960699 724961-5002S 724961-0002 724961-0001 724808-0001 712290-0001 A1600960699 A1600960599 007926V002000000
    €EU 234.98
    €EU 213.62
    BUY NOW
    ADD TO CART
    Item Welot Code Turbo Parts No.
    CHRA/ Core Assembly WL2-0015 724961/712290
    Electronic Actuator / 724961/712290
    VNT Nozzle Ring / 724961/712290
    Turbine Housing WL3-1817 724961/712290
    Compressor Housing WL3-0495 724961/712290
    Bearing Housing WL3-0248 724961/712290
    Compressor Wheel WL3-0599 724961/712290
    Heat shield / 724961/712290
    Shaft & Wheel WL3-1530 724961/712290
    Seal plate / 724961/712290
    Back plate / 724961/712290
    Oil Pipe WL3-0900 724961/712290
    Repair Kits WL3-1239 724961/712290
    Gasket Kits WL3-0900 724961/712290
    Calibration Data
    VSR Balance Calibration /
    T/hsg Angle /
    C/hsg Angle /
    Actuator Calibration 1 /
    Actuator Calibration 2 /
    Actuator Calibration 3 /
    Welot Code WL3-0248
    Turbo Parts No 708837-0001/724961-0001/724961-0002/724961-0003
    A Dia 79.5
    B Dia 61.5
    C Oil Inlet φ3.2
    D Oil Outlet 2-M6*1
    H Water 88
    VNT Lever Position 2-M12*1.5
    Welot Code WL3-1530
    Turbo Parts No 454197-0002/454197-0003/704487-0001/708116-0001/708837-0001/712290-0001/724808-0001/724961-0001/724961-0002/724961-0003/727211-0012/727211-0001/727238-0002
    A Dia 35.5
    B Dia 28.4
    C Dia 4.3
    D Dia 6
    E Dia 4.08
    Blades 12
    Closed or Open Open
    QTY of Rings 1
    Remark /
    Welot Code WL3-0599
    Turbo Parts No 454197-0002/454197-0003/704487-0001/708116-0001/708837-0001/712290-0001/724808-0001/724961-0001/724961-0002/724961-0003/727211-0012/727211-0001
    Inducer Diameter A 22.5
    Exducer Diameter B 38
    Shaft Bore C 4.08
    Tip Height D 3.18
    Total Height E 28.86
    Blades 6/6
    Flatback / Superback Superback
    Milling Wheel /
    Remark /
    Welot Code /
    Turbo Parts No /
    A Dia /
    B Dia /
    C Dia /
    D Height /
